STRONGER, SMOOTHER, SMARTER

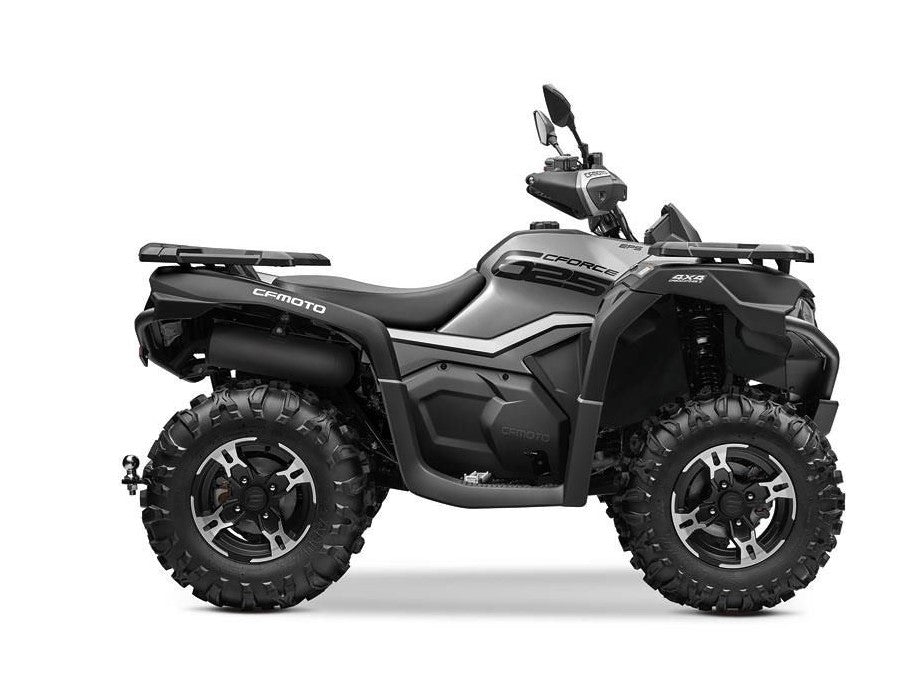

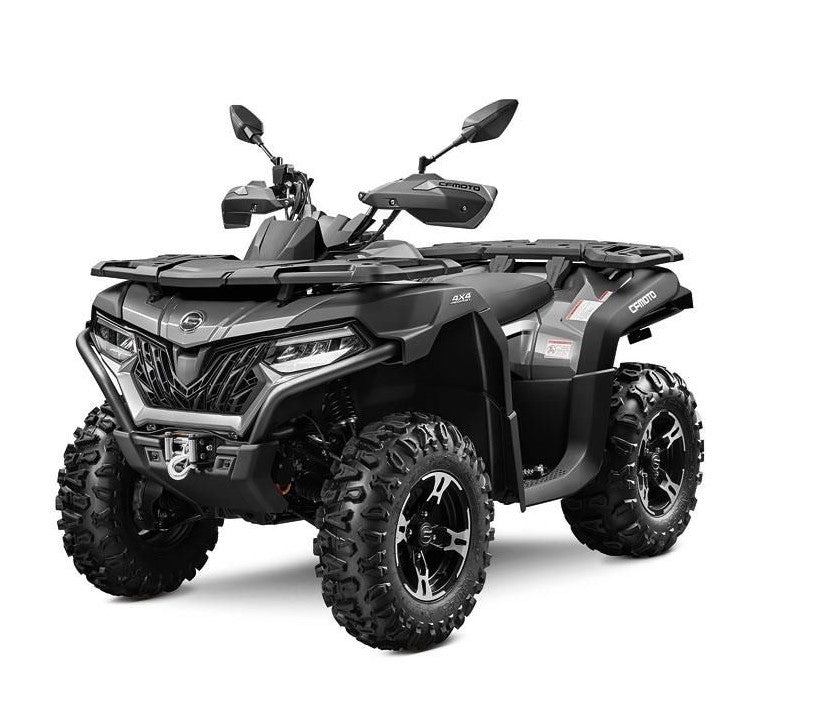

CFMOTO’s largest‑capacity single‑cylinder ATV, the CFORCE 625 EPS, has received a series of technical updates and refinements—elevating an already impressive platform to new heights.

Now with premium moulded plastic carrier racks.

*Overseas models shown.

GO BIG

CFMOTO’s engineers left no stone unturned when it came to reviewing the robust 580cc single-cylinder, liquid-cooled, fuel-injected engine in their quest for superior power and unmatched reliability.

The new cylinder head features revised intake and exhaust channels accompanied by a new combustion chamber design, optimised coolant channels, and camshaft profile. Complemented by larger-diameter intake and exhaust valves, resulting in a significant increase in engine performance.

The piston has been upgraded to a forged type (previously cast) for greater strength with reduced weight and vibration. A Diamond-Like Coating (DLC) piston ring also enhances the engine’s durability.

Larger intake and exhaust tube diameters further increase airflow helping boost maximum power output to 45hp @ 6,500rpm (from 41hp @ 6,750rpm) and maximum torque to 51Nm @ 6,000rpm (from 49Nm @ 5.250rpm).

ELECTRONIC THROTTLE

Having more power on tap is great, but how that power is delivered is arguably more important! That’s why the new CFORCE 625 EPS has been equipped with the latest UP6.0 ECU platform. Far more powerful than before, the 112-pin ECU unit (48-pin previously) delivers improved throttle connection, smoother control, and increased comfort.

The throttle lever and throttle body have also been upgraded from mechanical to electronic (ride-by-wire) units as found on high-end sports bikes and enable the choice between two switchable drive modes, WORK and NORMAL.

612KG TOWING CAPACITY

Kiwi farmers will certainly appreciate the additional power and smoother ride, but they’ll really love the 612kg towing capacity (increased from 350kg) for tackling the bigger jobs.

SMOOTH RIDE

The chassis wasn’t forgotten either; CFMOTO engineers made several modifications to optimise the engine mounting to reduce noise, vibration, and harshness.

Dual A-arm suspension delivers comfort and confidence in rough terrain, a class-leading turning circle of 7.25m guarantees easy manoeuvring and four-wheel hydraulic disc brakes provide some serious stopping power.

SUPPORT
YOU CAN TRUST

CFMOTO is a brand you can rely on. Backed by a two-year warranty on all ATV and UTV models and supported by a national dealer network to keep you going 24/7.

MODEL
HIGHLIGHTS

- 45hp (33kW), 580cc, single-cylinder four-stroke engine
- Two drive modes, WORK or NORMAL
- Bosch electronic fuel injection
- CVT transmission
- Engine braking
- Selectable 2WD/4WD with locking front and rear differential
- Electronic power steering (EPS)
- Four-wheel hydraulic disc brakes
- Double A-Arm independent suspension
- 3000lb winch
- 12-inch alloy wheels
- 25-inch six-ply CST Tyres
- Handguards
- 5-inch display
- 612kg towing capacity
- 35kg front/70kg rear carrier rack capacity
- Tow package, indicators, horn and mirrors
- Two-year warranty
- Available in Velocity Grey
